Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring
Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring
Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring
Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring
Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring
1 / 5
Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring
Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring
Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring
Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring
Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring

Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
XYD Series
Material
PVC
Size
600*600mm
Function
Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static
Surface Treatment
Rhpp
Color
Different Colors Available
Certification
CE, ISO, ASTM, Floorscore
Electronic Resistance
10e4~10e6 Ohm
Weight
3980G/M2 (2.0mm Thickness)
Slip Resistance Wet
R9
Color Fastness
≥6
HS Code
3918109000
🔍

Product Description

Antistatic Floor Tiles Lab Wear-Resistant ESD Tiles Waterproof Conductive PVC Flooring

ESD tiles (Conductive PVC Flooring) utilize an electrostatically conductive network formed by the interface of plastic particles. This network ensures the permanent conductive properties of ESD flooring. The primary materials are polyvinyl chloride resin, conductive materials, stabilizers, plasticizers, and pigments. The pattern resembles a marble effect, offering an excellent decorative finish.

Item Standard Data
Size (mm) EN427 Standard: 600*600, 610*610, 900*900; Custom: 305*305, 608*608, 914*914
Thickness (mm) EN428 2.0, 2.5, 3.0
Weight (g/m2) EN430 3980 (2mm Thickness)
Dimensional EN434 ≤0.25%
Wear Resistance EN660-2 Class P
Fire Resistance EN13501-1 Bfl-s1
📸

Detailed Photos

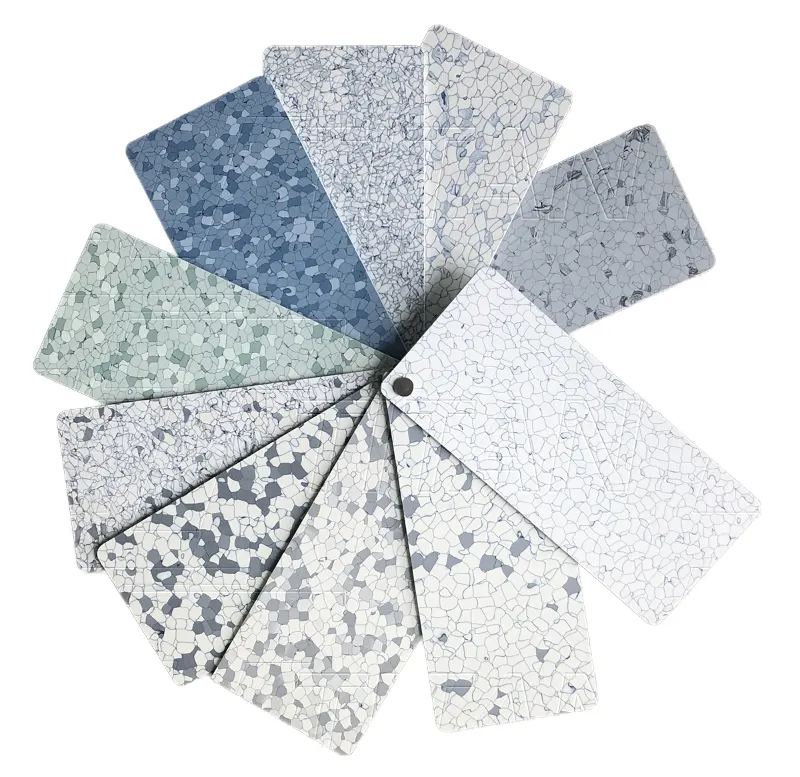

ESD Tiles Close up

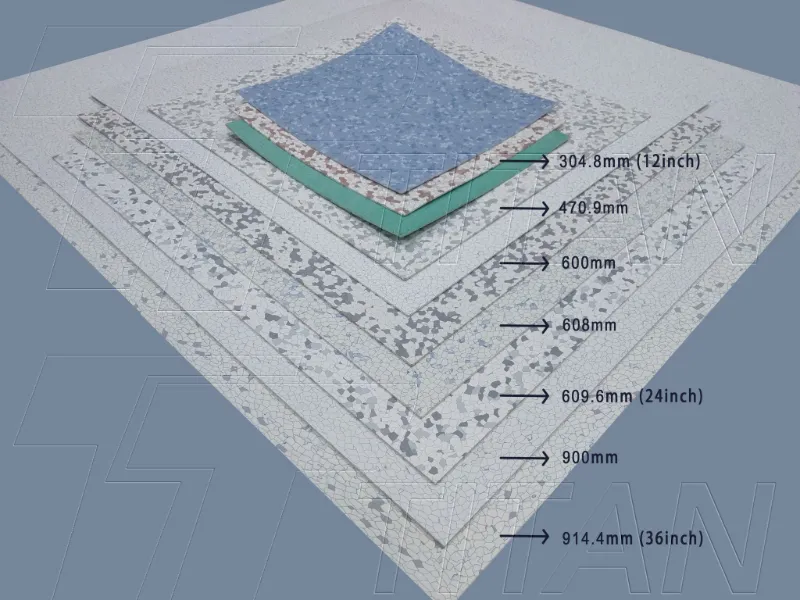

ESD Tiles Surface

Color options for Conductive PVC Flooring:

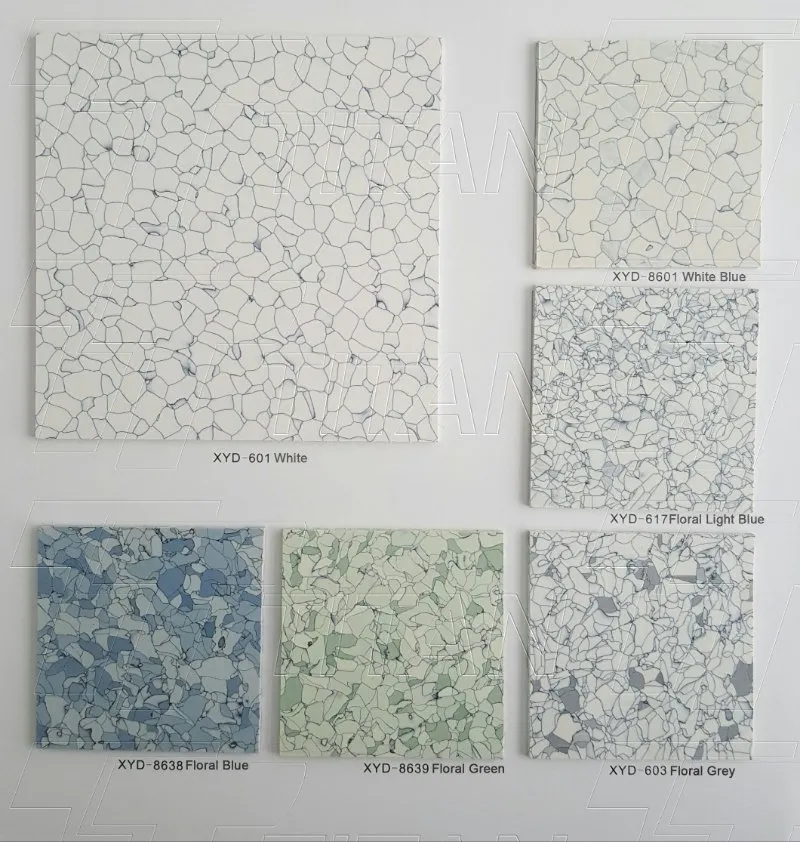

Color Option 1

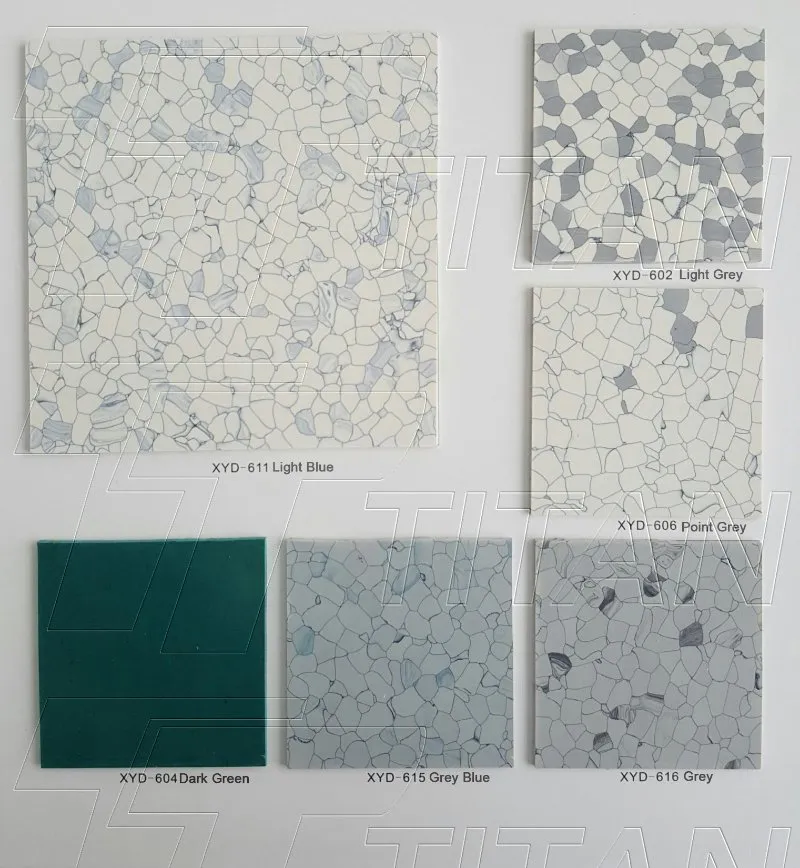

Color Option 2
⭐

Our Advantages

  • Permanent conductive properties
  • Excellent dimension stability
  • More patterns for better decorative effect
  • Improved wear and ease of maintenance
  • Fireproof, waterproof, and corrosion protection
  • Environmentally-friendly materials
  • RHPP technique surface treatment for high density
Using "RHPP" technology, raw materials are rolled under high pressure to close pores, creating a stain-resistant film. This ensures the carbon fiber network remains intact for permanent conductivity.
📦

Packaging & Shipping

1. Standard 20ft container can load 12 pallets.
2. One 20ft container can load 4320m² (2mm thick) or 3024m² (3mm thick) with matched accessories like adhesive and welding rods.

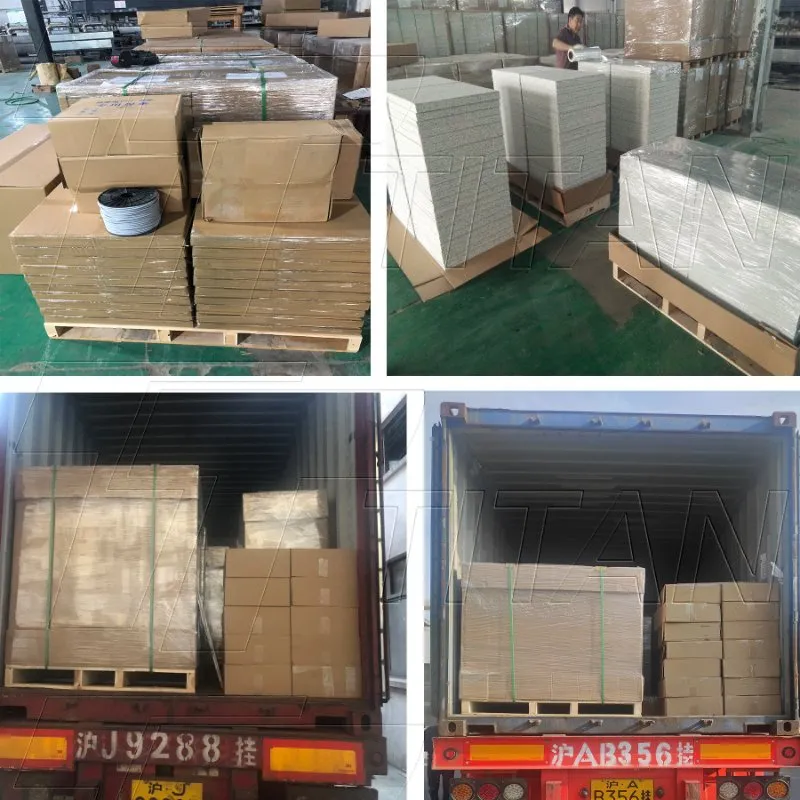

Packaging Detail
🛠️

Installation Instructions

Tiles should be installed on subfloors that are leveled, smooth, and free of cracks. Residual humidity should be under 2.5%. The site temperature should reach at least 18ºC for 24 hours before installation. Qualified conductive glue (below 105 Ohm) must be used.

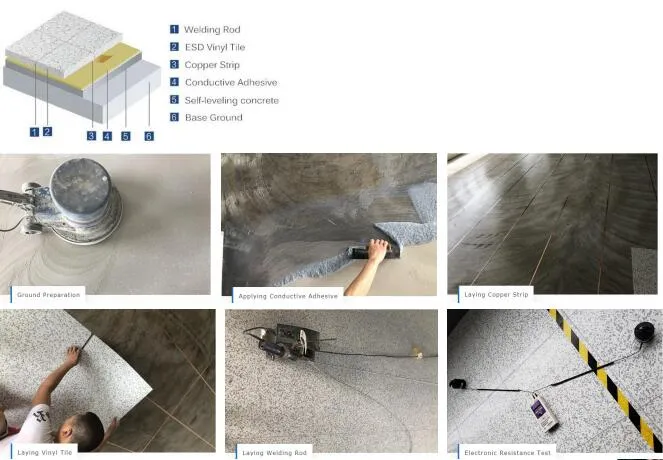

Installation Process
🏢

Application & Projects

Widely applied to electronics, microelectronics, telecommunications, clean rooms, computer rooms, and other precision instrument environments.

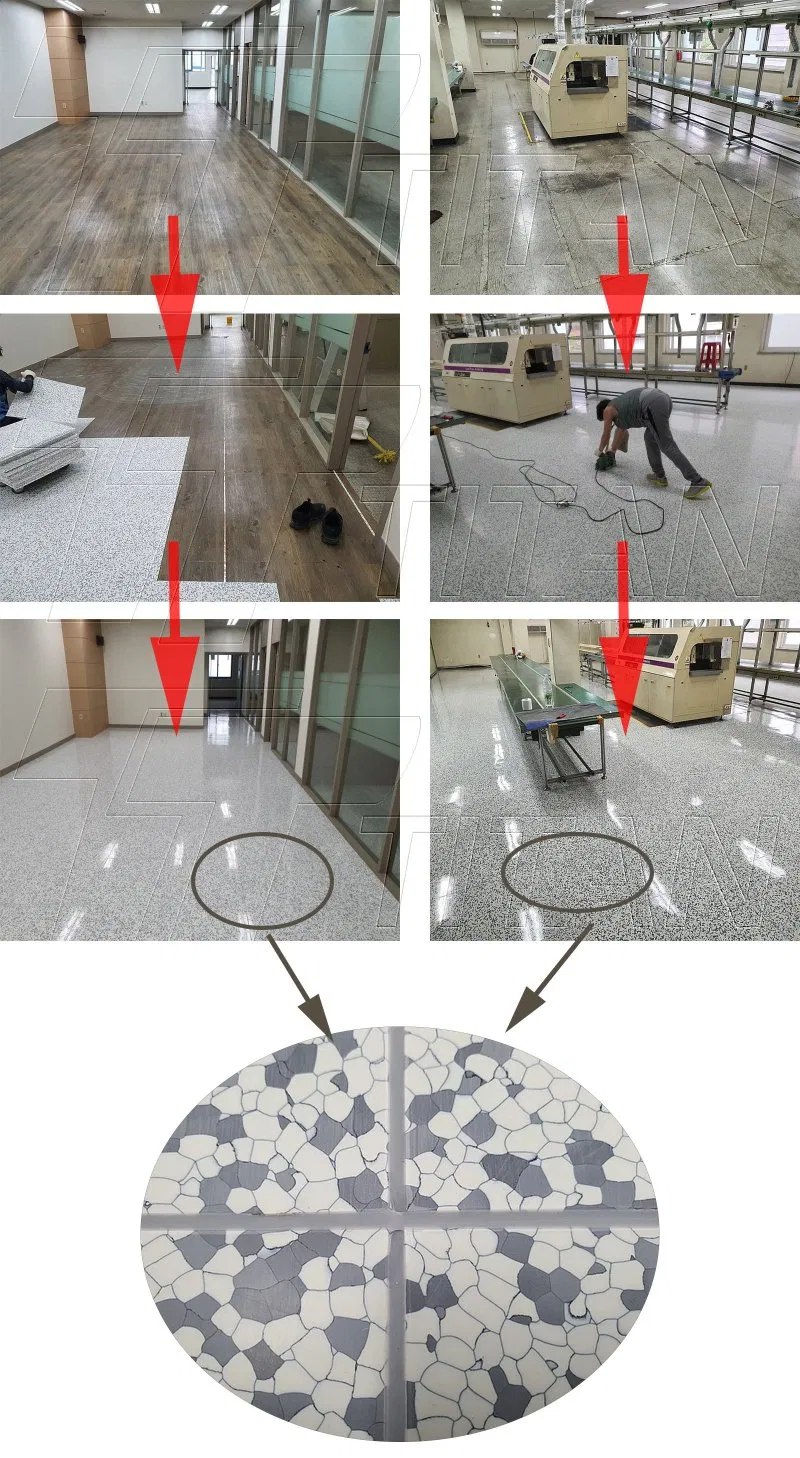

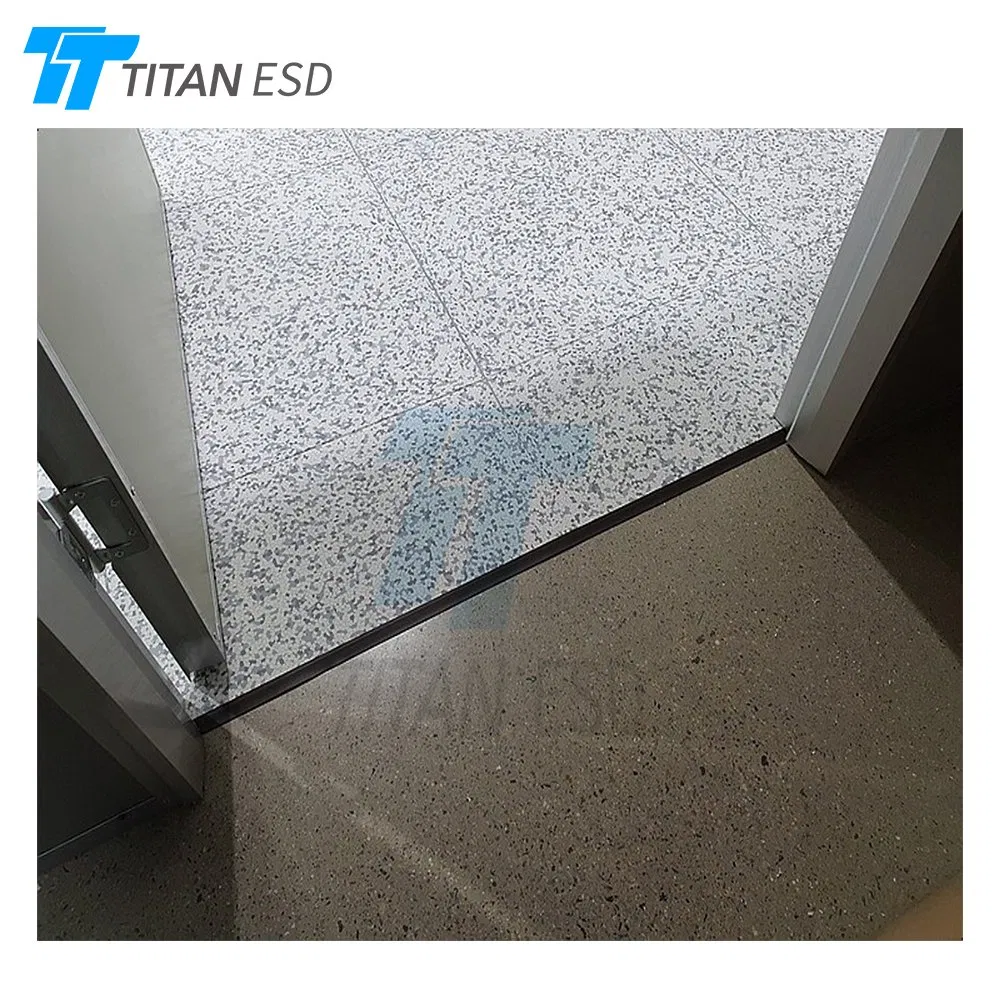

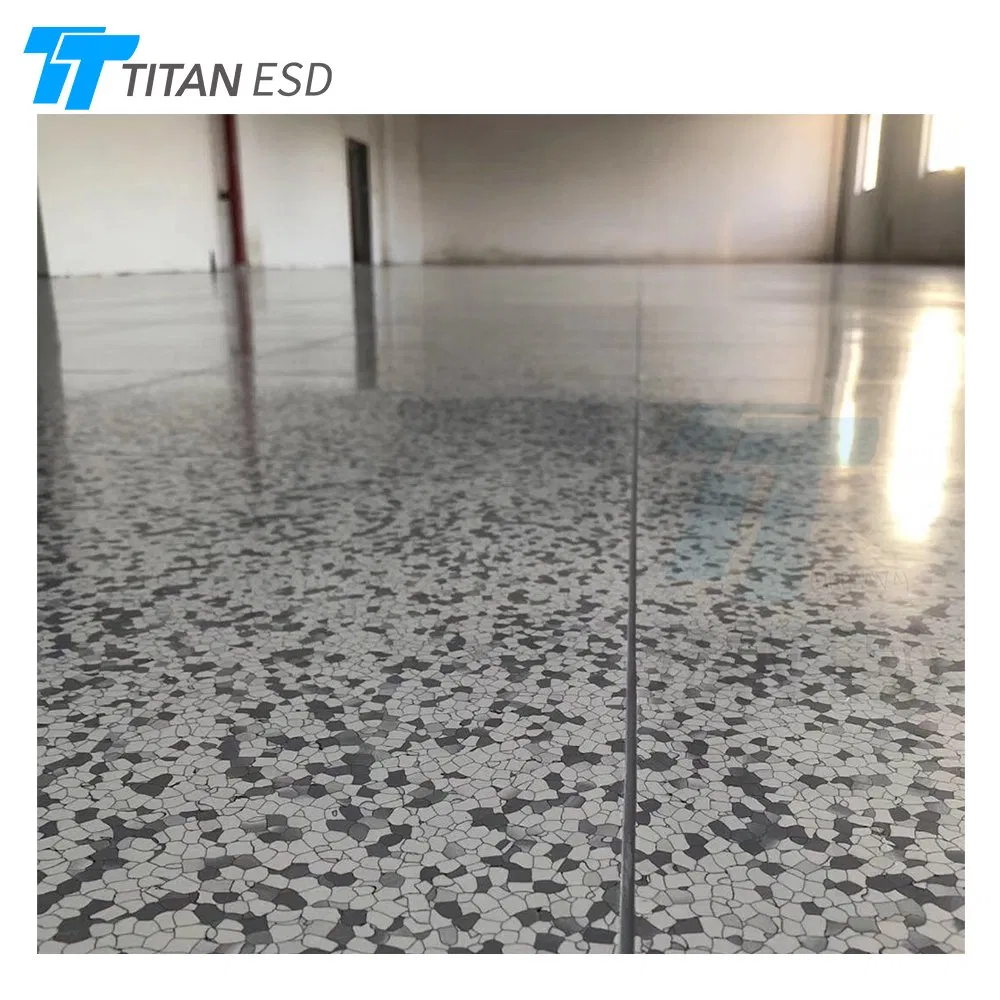

Project 1

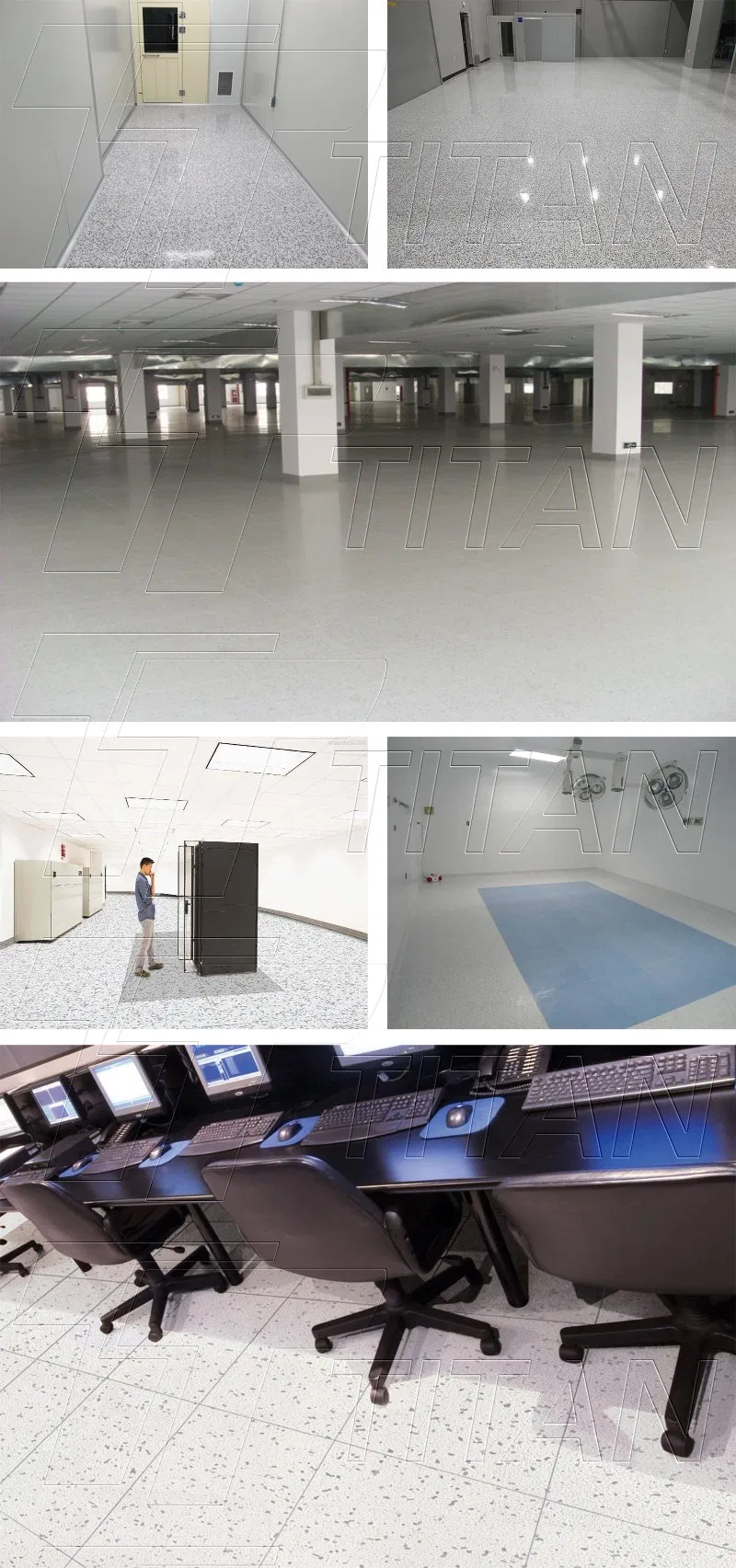

Project 2
❓

Frequently Asked Questions

May I have my own design?
Yes, we produce and protect exclusive editions for many brands.
How about the delivery time?
Normally, products are ready within 15 days after receiving the deposit.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 500 SQM for each color.
How do you assure product quality?
As a producer for world-famous brands, we maintain a professional QC team to inspect each production process.
What are your standard payment terms?
We primarily accept T/T (30% deposit, balance against B/L) and L/C at sight.
Can you provide solutions for specific requests?
Our professional sales and R&D teams will do their best to provide you with tailored solutions for any request.
