Running Fied Paver for Athletic Running Track Playground/Plastic Rubber Racetrack Sports Field Surface Flooring

1 / 5

Running Fied Paver for Athletic Running Track Playground/Plastic Rubber Racetrack Sports Field Surface Flooring

Customization:	Available
Type:	Paver Machine for Running Track
Usage:	to Pave Running Track

Send Inquiry

Product Description

Integrity-Based, Quality Foremost, Customer-Oriented, Service Priority

We work hard to supply quality innovated products through professionalism, precision, enthusiasm, and patience.

Basic Specifications

Model NO.

TP series

Speed

0.8-6m/Min

Capacity

500m2/Hour

Power

8kw

Weight

900kgs

Dimension

3000X1800X750mm

Warranty

1 Years

Transport Package

Wooden Case

Specification

2500mm

Production Capacity

50 Sets/Month

Product Description

Professional installation machines for EPDM rubber particles sports fields, including mixing machines, paver machines, glue sprayers, and line marking machines.

Mixing Machine (J-100)

Designed to mix and stir glue and EPDM particles efficiently.

Mixing Capacity	100kg/time
Power	4kw
Weight	110kg
Dimension	110011001300mm

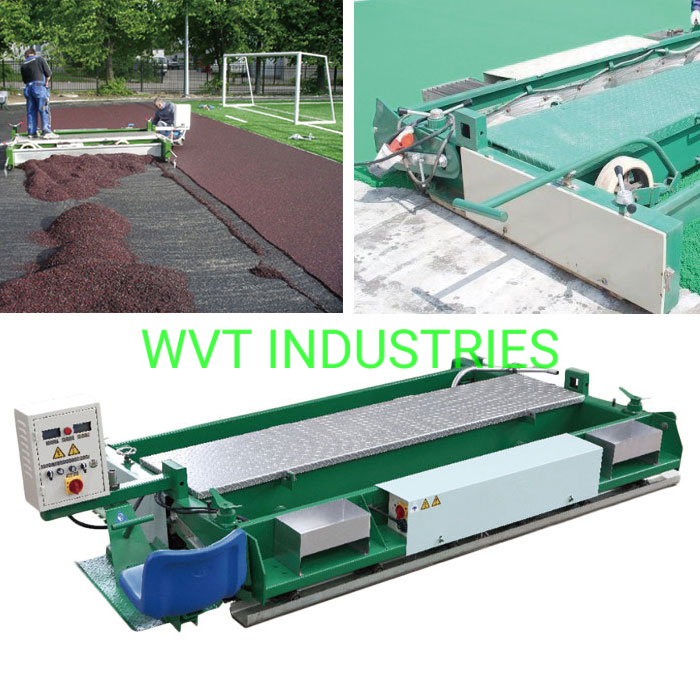

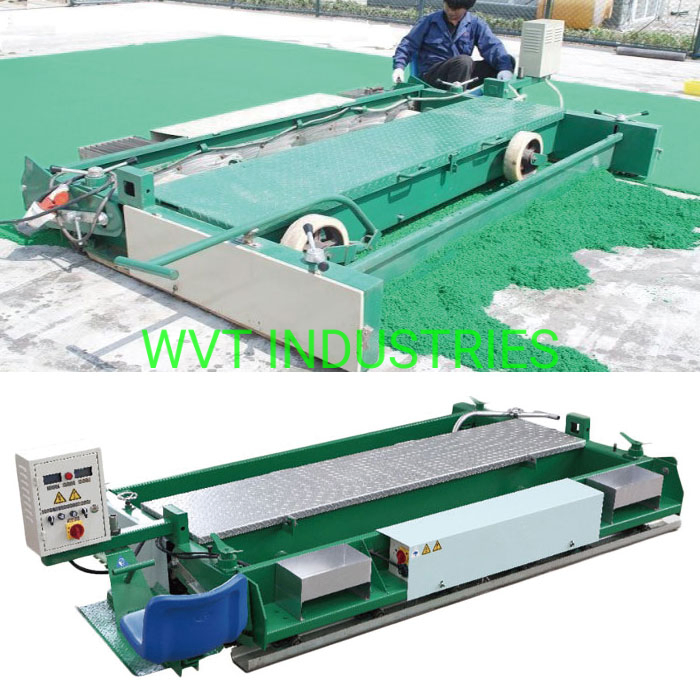

Paver Machine (TP-25)

Used to evenly pave the mixture of glue and EPDM particles. Typical ground layer thickness is 10mm.

Width	2500mm
Speed	0.8-6m/min
Capacity	500m2/hour
Power	8.0kw
Weight	900kg

⚙️

Key Advantages:
- SIMEN frequency changer & Patent sprocket chain wheel
- Hydraulic system control for lifting and descending (8Mpa)
- Dual scraper system: Front for preliminary scraping, Latter for compacting via vibration.

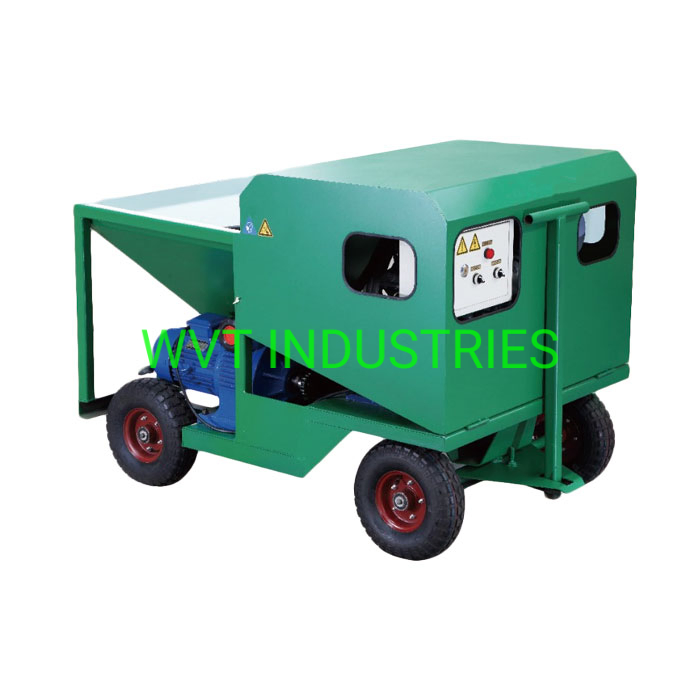

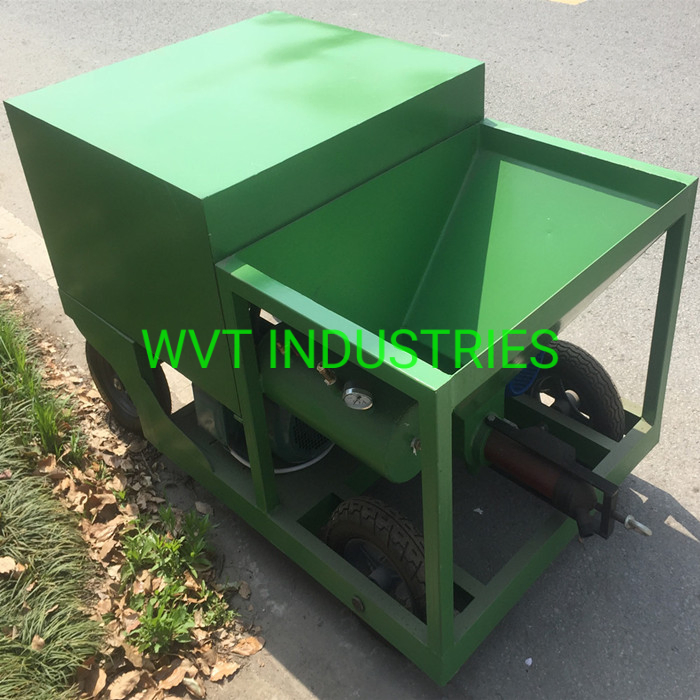

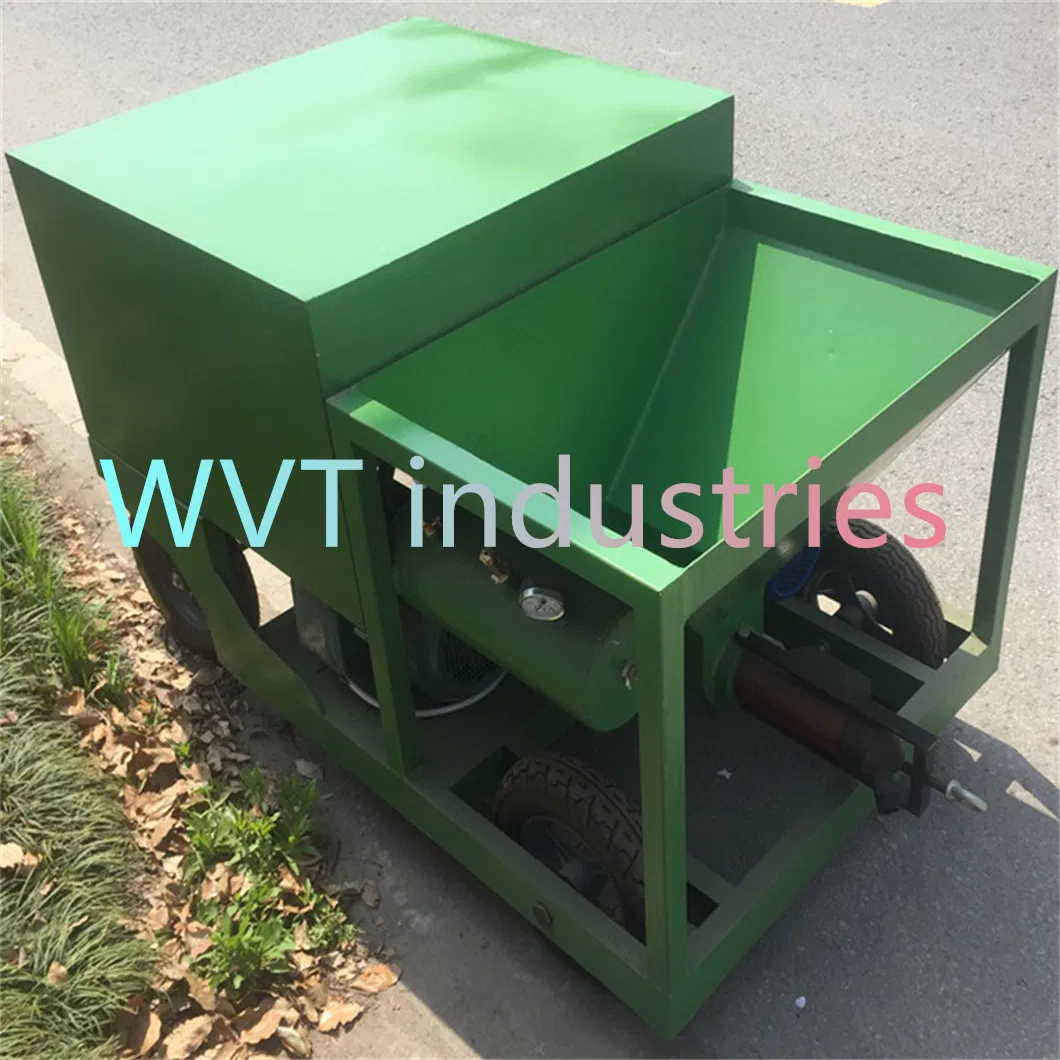

Glue Sprayer (PT-120)

Designed to spray the surface layer mixture. Typical thickness is 3mm.

Air Displacement	1m3/min
Hopper Volume	120L
Capacity	12-15kg/min
Power	10kw

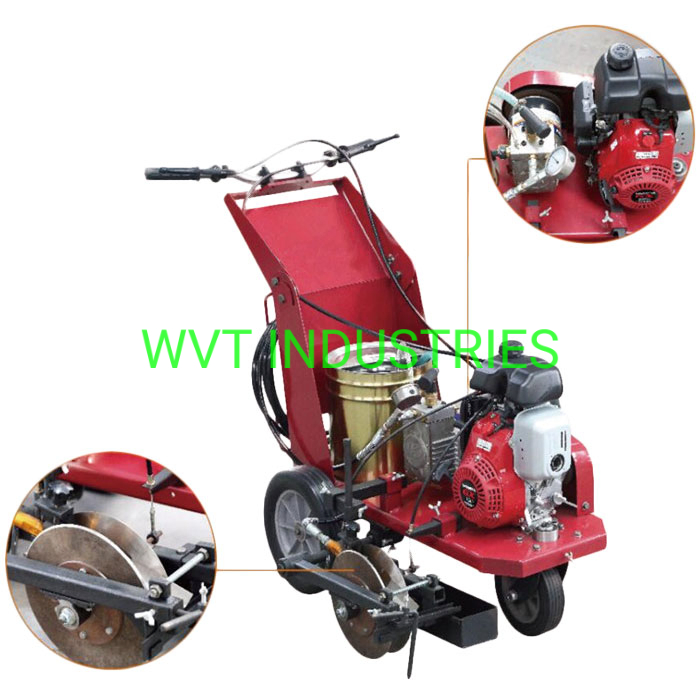

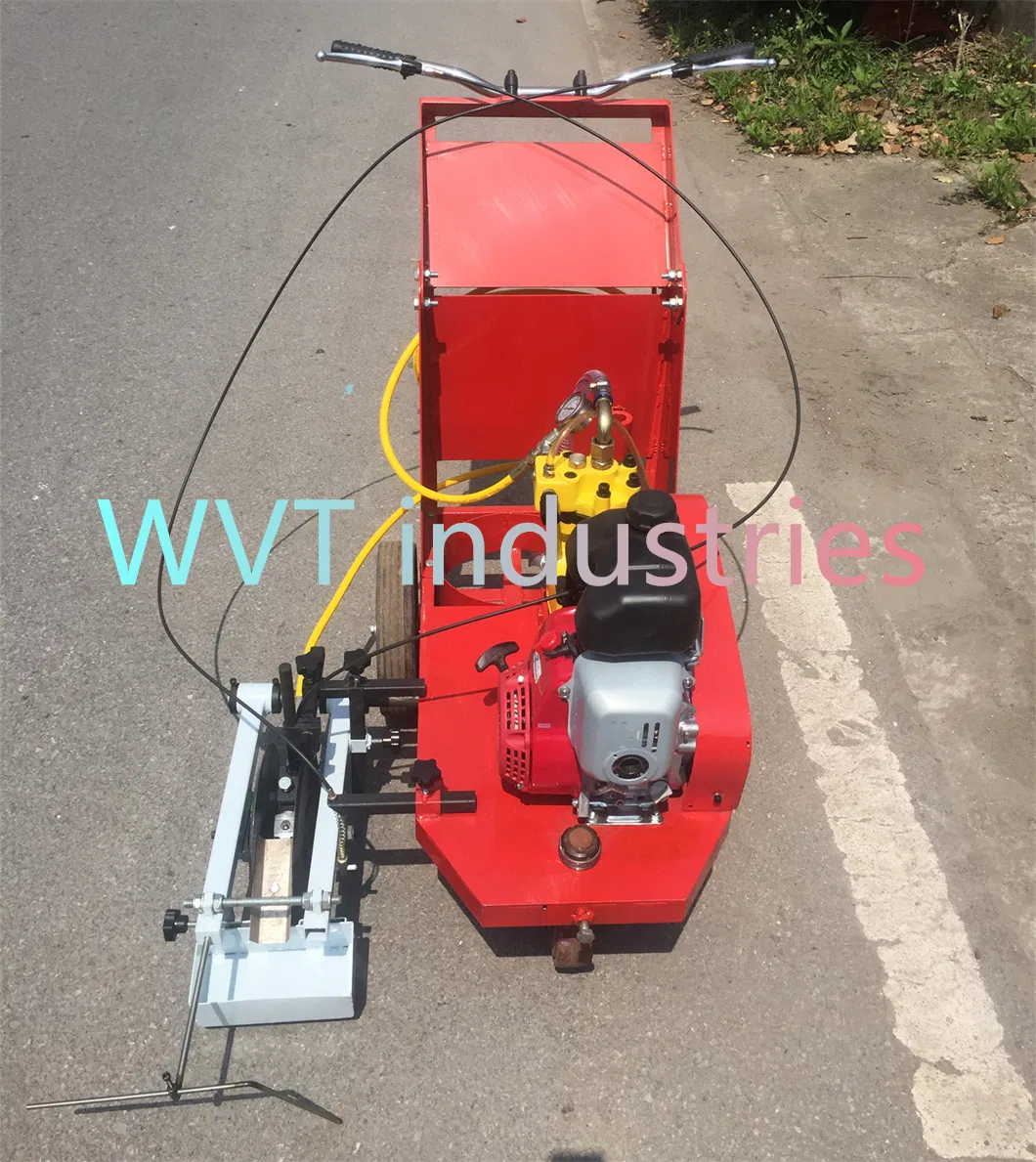

Line Marking Machine (HX-2)

Precision spraying for white color lines on the surface layer.

Air Pressure	12Mpa (1700psi)
Flux	1.2L/min
Power	Honda Petrol Engine
Weight	100kg

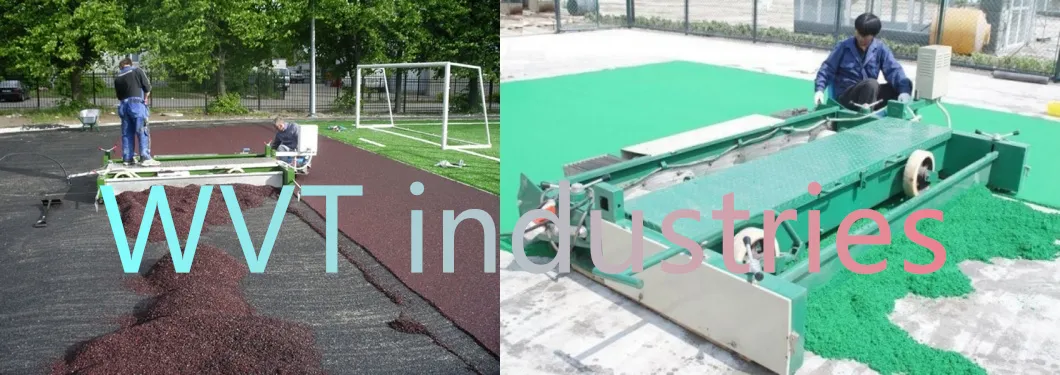

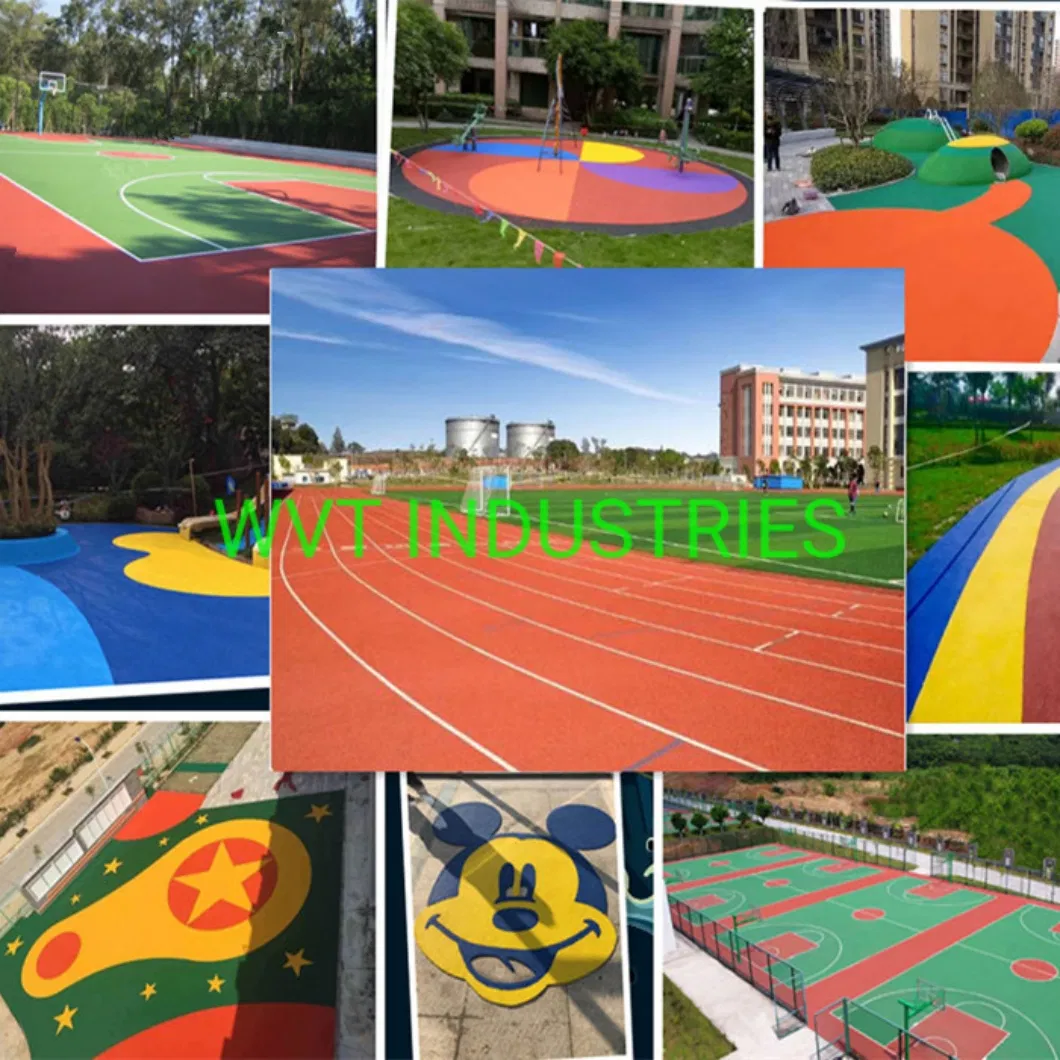

Applications

🏃‍♂️

Ideal for installing EPDM surfaces on:

Athletic running tracks
Basketball and tennis courts
Kindergarten outdoor sports fields

Our Advantages

🛠️Installation, debugging, and training services provided.

📞Life-long after-sales service and quick-response tech support.

🛡️1-year warranty with free spare parts replacement for quality issues.

Payment & Delivery

Payment Terms

T/T, L/C, Western Union

Delivery Time

5 days (in stock), 15-20 days (no stock)

Package

Standard Wooden Case

Shipping Port

Shanghai Port or others, China

Frequently Asked Questions

Q1: What types of sports surfaces can these machines install? Our equipment is specifically designed for EPDM rubber particle surfaces, including athletic running tracks, basketball courts, tennis courts, and playground flooring.

Q2: What is the warranty period for the machinery? We provide a 1-year warranty. During this period, any parts broken due to quality reasons will be replaced free of charge.

Q3: How long does delivery take? If the items are in stock, delivery takes approximately 5 days. For non-stock items, the production lead time is between 15 to 20 days.

Q4: Do you offer technical support for machine operation? Yes, we provide installation, debugging, and training services. We also offer lifelong technical support online or on-site if needed.

Q5: What are the main features of the TP-25 Paver Machine? The TP-25 features a SIMEN frequency changer, a hydraulic control system for lifting, and a dual-scraper system for preliminary material distribution and final vibrating compaction.

Q6: How is the equipment packaged for international shipping? All machines are securely packed in robust wooden cases to ensure they are protected during sea or land transport.
