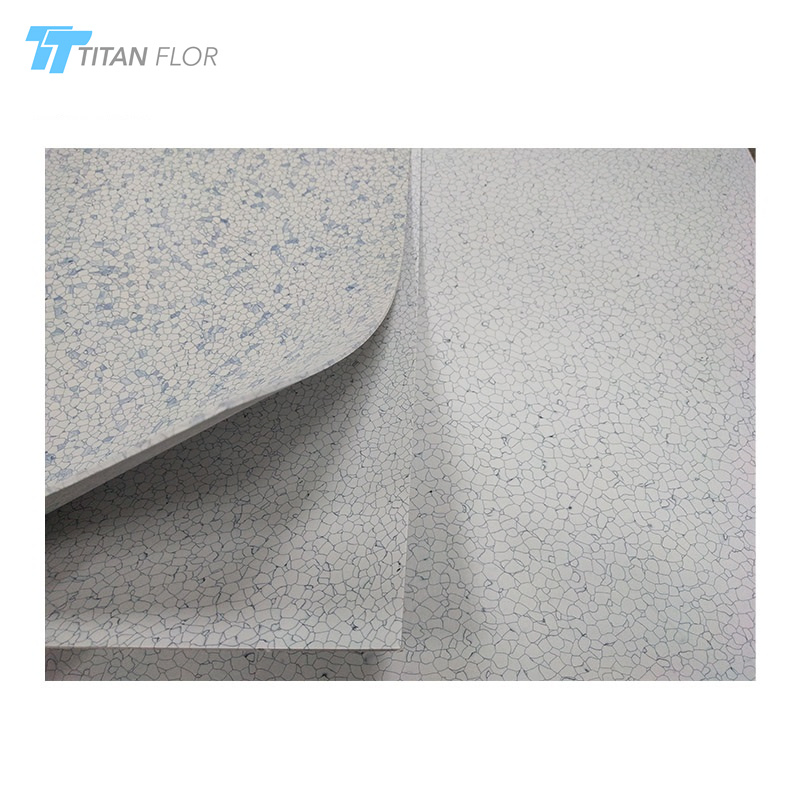

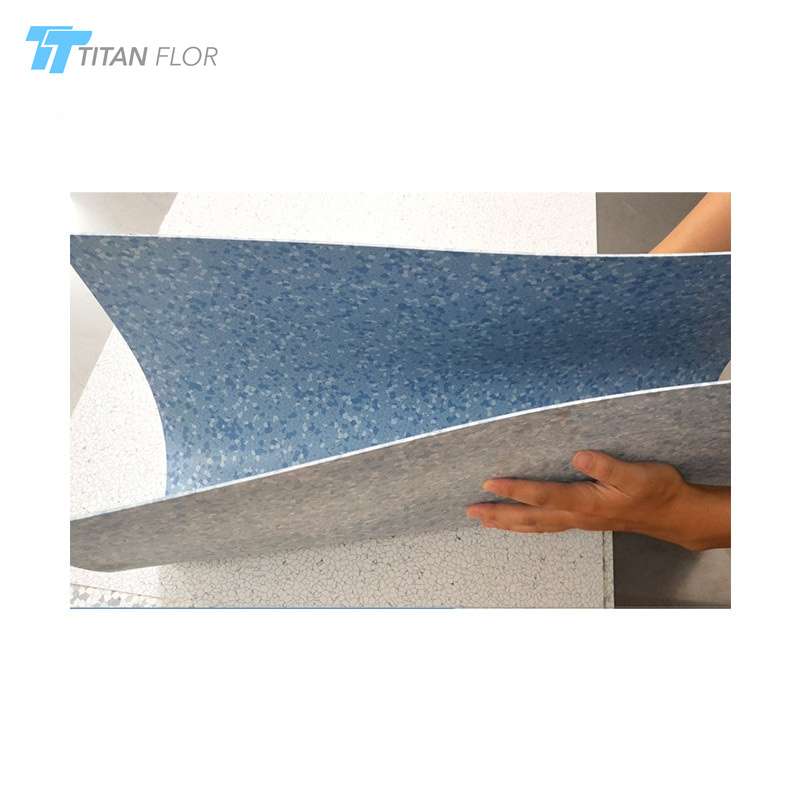

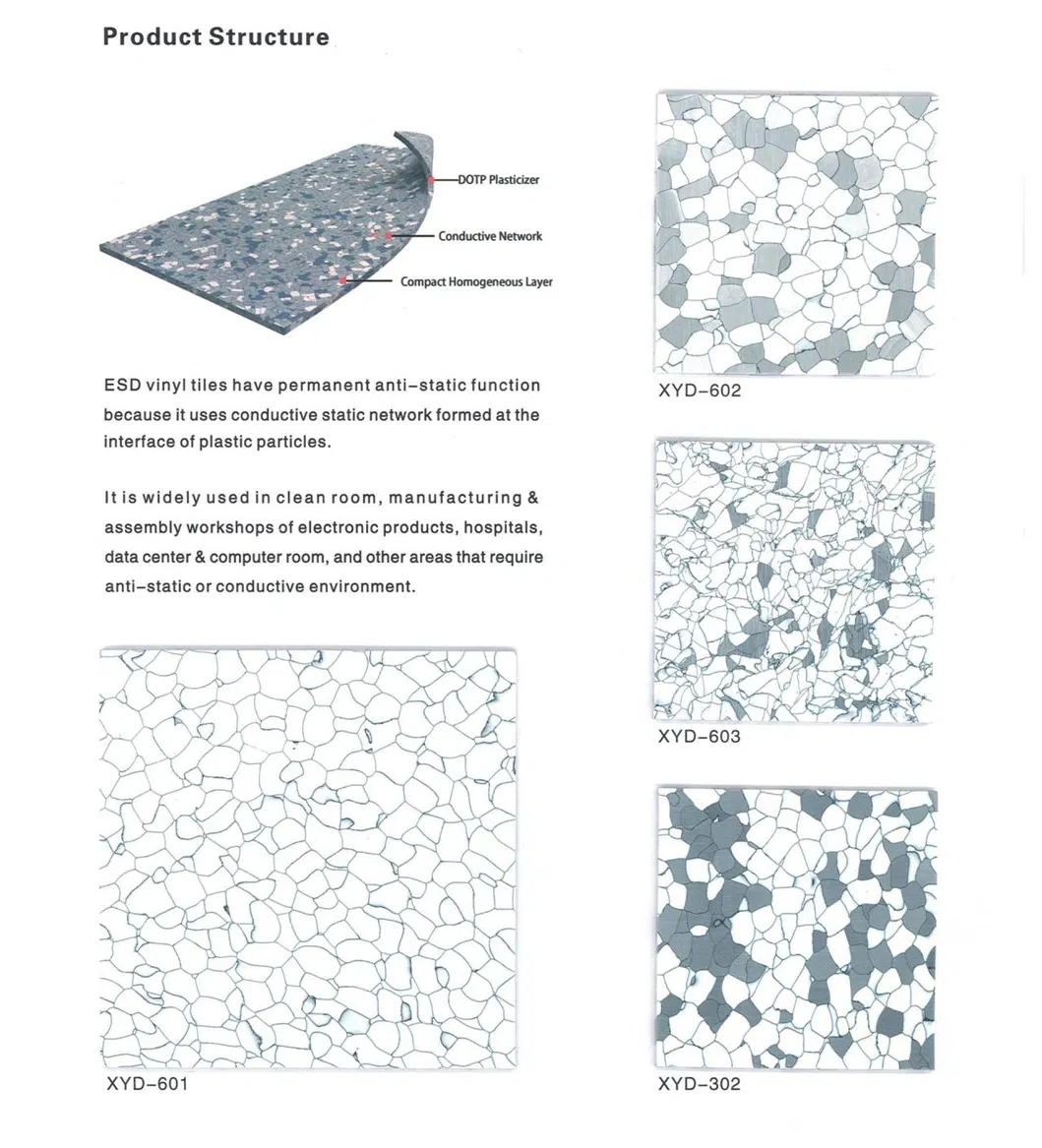

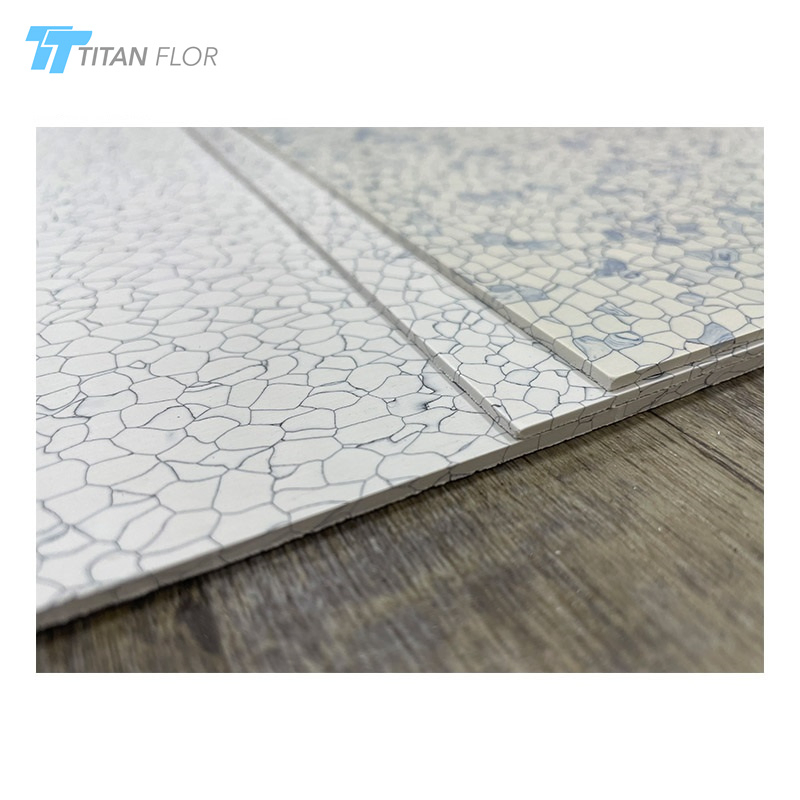

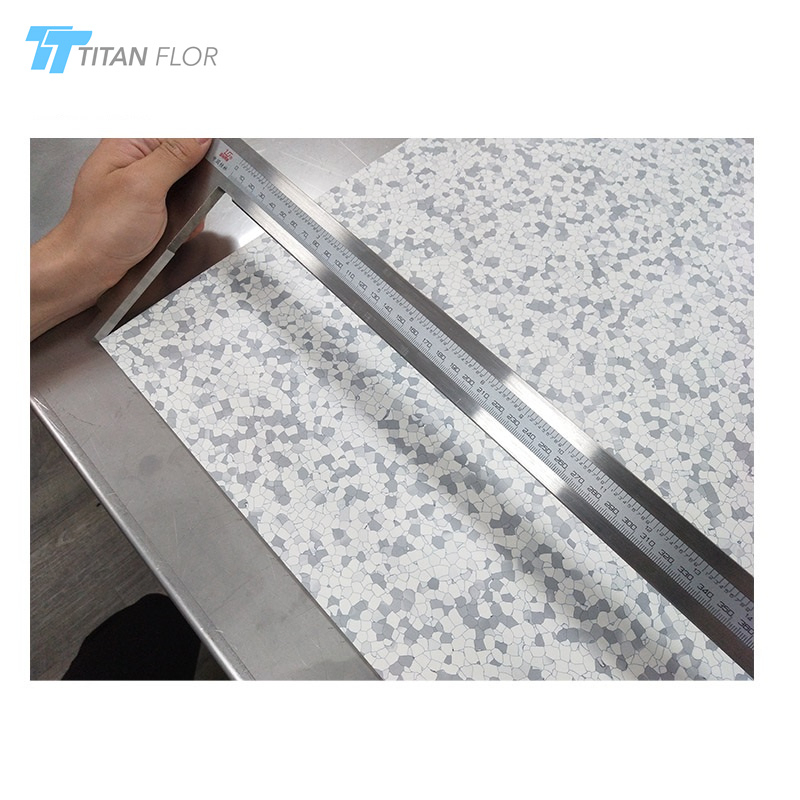

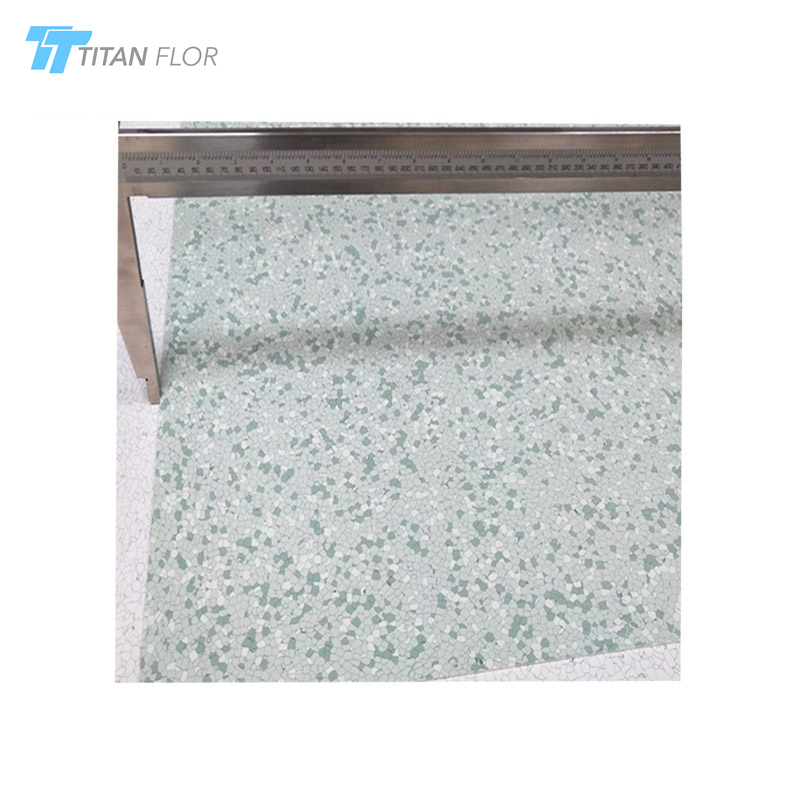

ESD vinyl tiles is a homogeneous form flooring, which utilizes an conductive network electrostatically and formed by the interface of plastic particles. It ensures permanent conductive properties of ESD flooring. The main materials of ESD flooring tile are polyvinyl chloride resin, conductive materials, stabilizers, plasticizers, pigments and other auxiliary materials. The pattern of a ESD flooring tile resembles a marble pattern, it has a good decorative effect.
| Model NO. | SHIELD200 |
|---|---|
| Material | PVC |
| Size | 600*600mm / 610*610mm / 900*900mm |
| Thickness | 2.0mm, 2.5mm, 3.0mm |

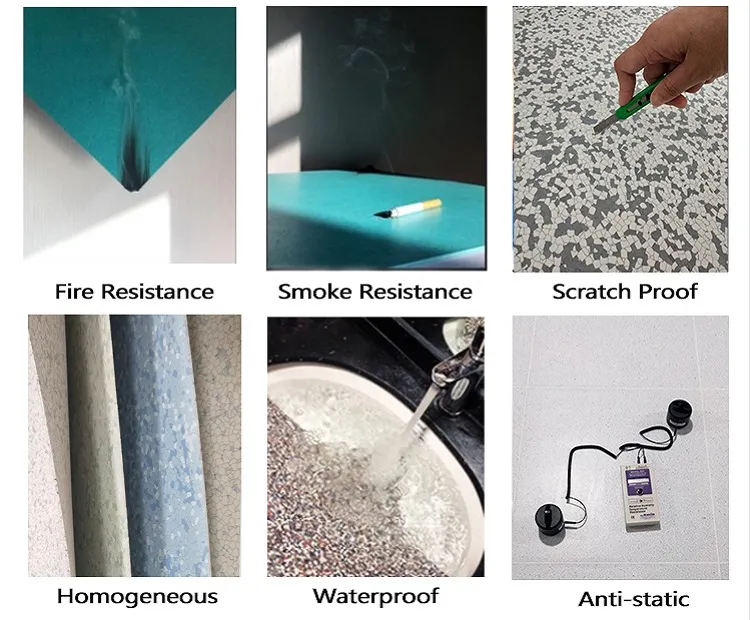

| Function | Thermal Insulation, Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static |
| Surface Treatment | UV Coating |

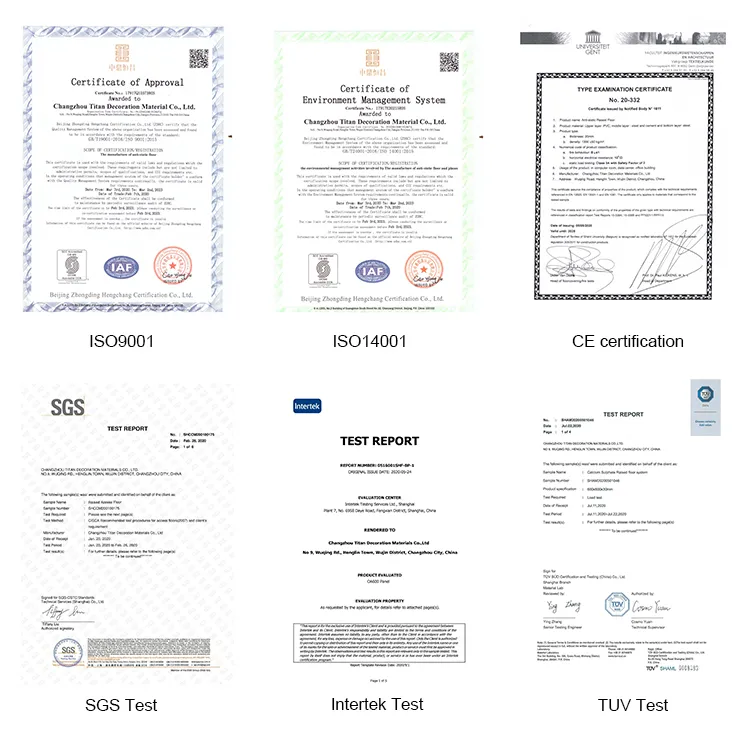

| Certification | CE, ISO, ASTM, Floorscore |
| Electronic Resistance | 10^4 - 10^6 Ω |
| Application | Electrical Factory, Computer Room, Bank, Offices, Workshops |
| Test Item | Standard | Data Result |
|---|---|---|
| Electrical Resistance | SJ/T11236 / EN1081 | Conductive: 10^4-10^6 Ω / Static-dissipative: 10^6-10^9 Ω |
| Fire Resistance | EN13501-1 / SJ/T11236 | Bfl-s1 / FV-0 |
| Static Decay | GJB2605 / FTM1080 | ≤ 2s / 0.01s |
| Slip Resistance | DIN 51130 / EN13893 | R9 / ≥0.3 |
| Residual Concavity | EN433 | 0.03mm |
| Formaldehyde Emission | EN717-1 | None |

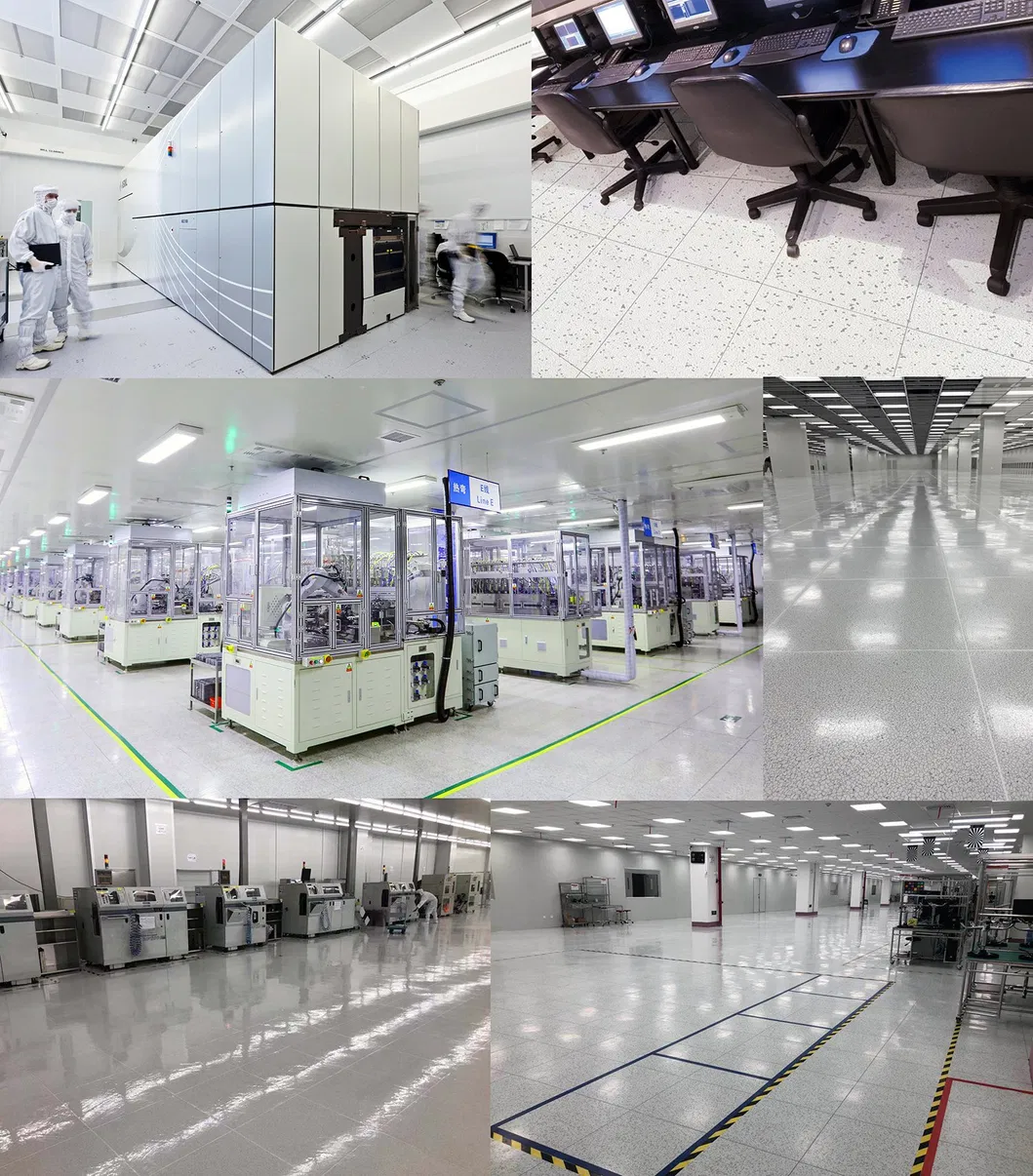

Widely used in clean rooms, manufacturing & assembly workshops of electronic products, hospitals, data centers & computer rooms, and other areas requiring anti-static environments.

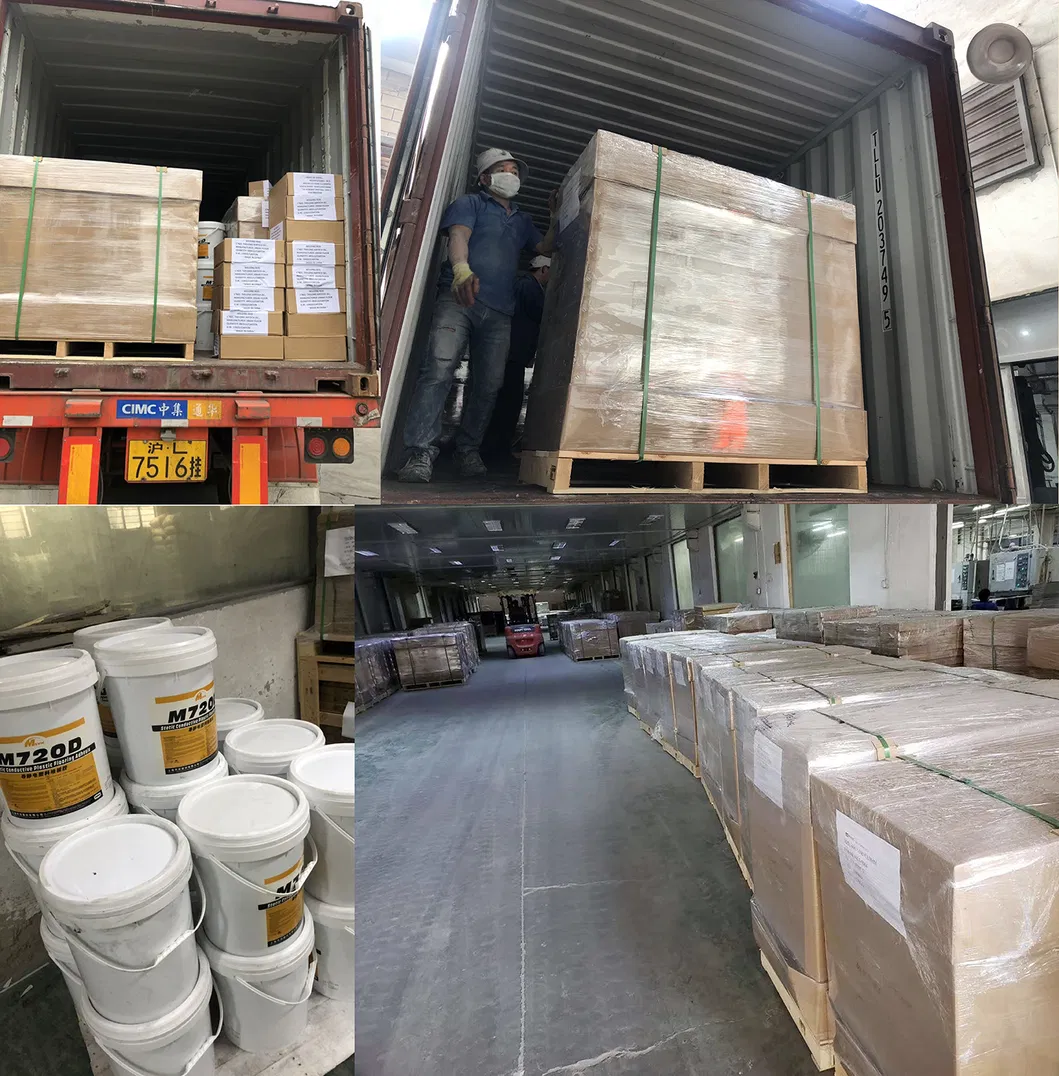

1. Standard 20ft container can load 12 pallets.
2. One 20ft container capacity: 4320m² (2mm thick) or 3024m² (3mm thick) including matched accessories like adhesive and welding rods.
