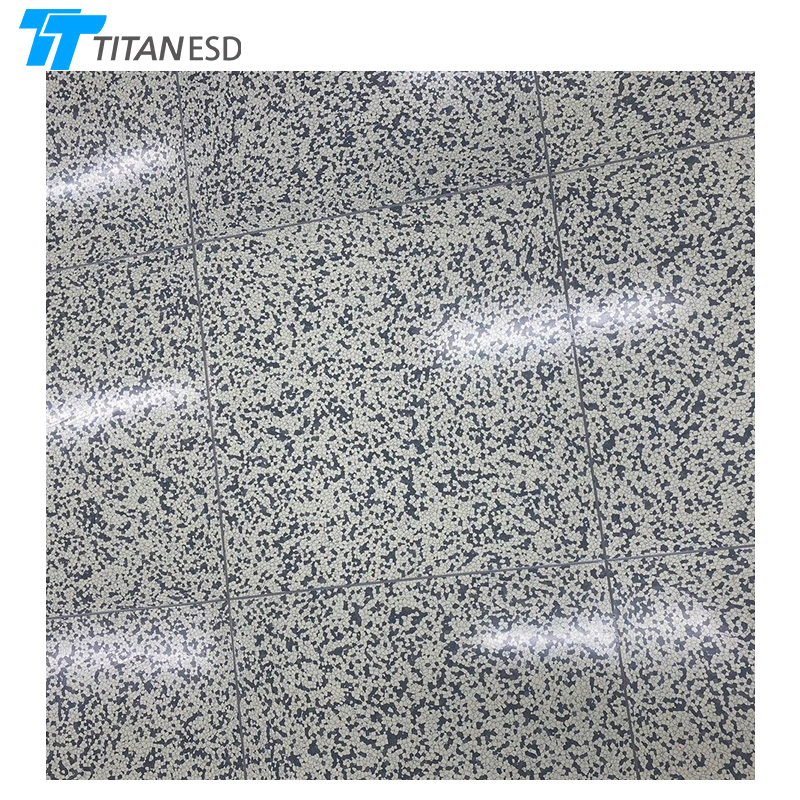

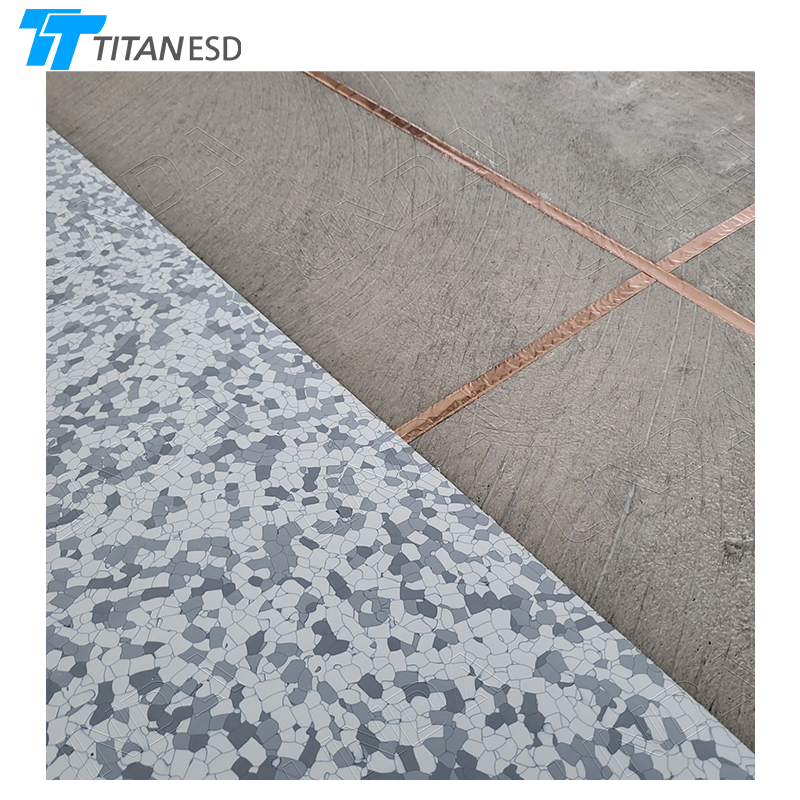

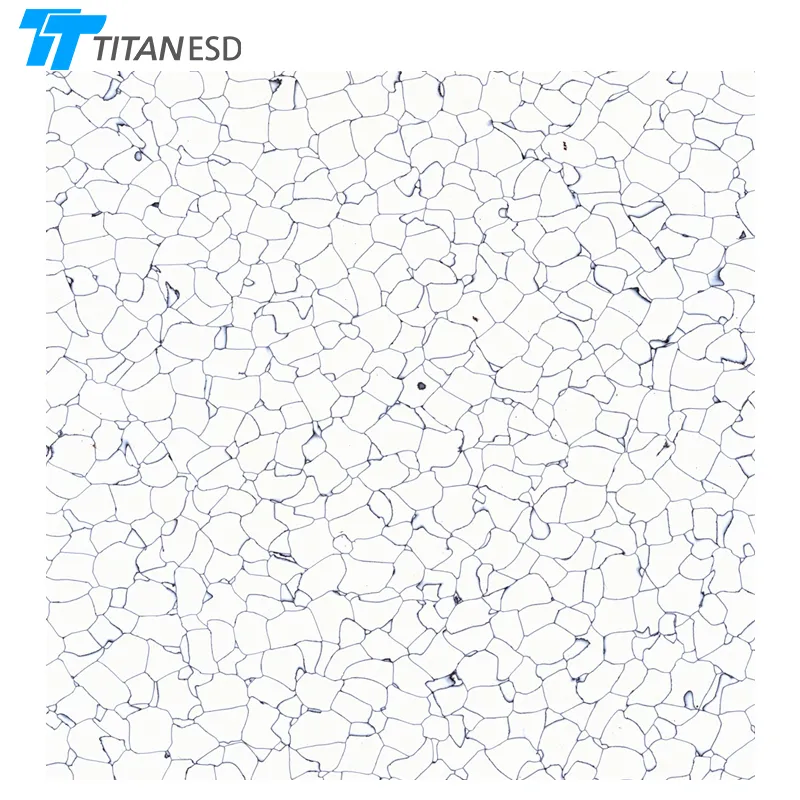

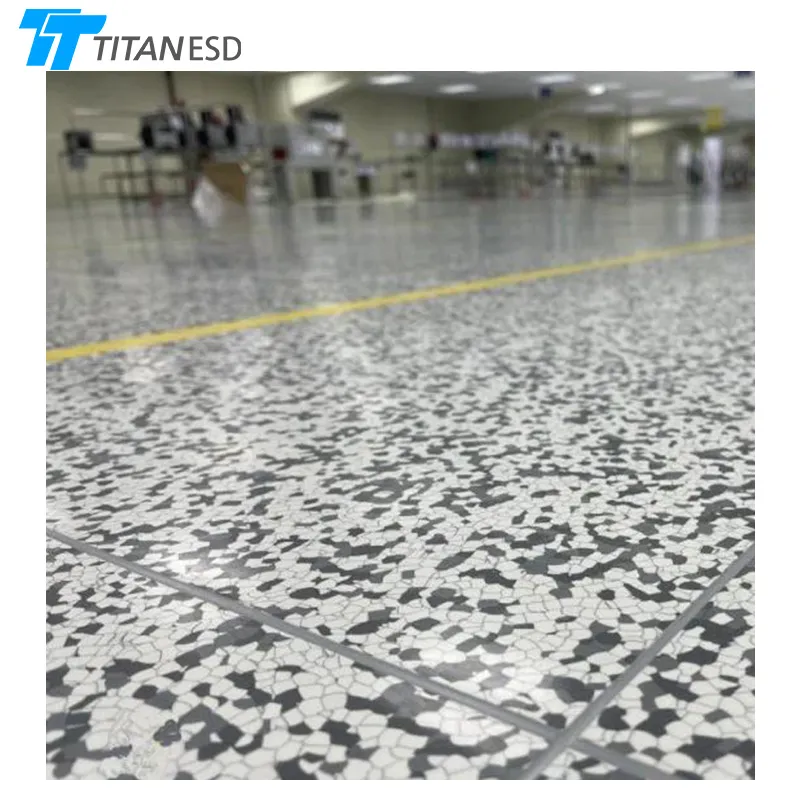

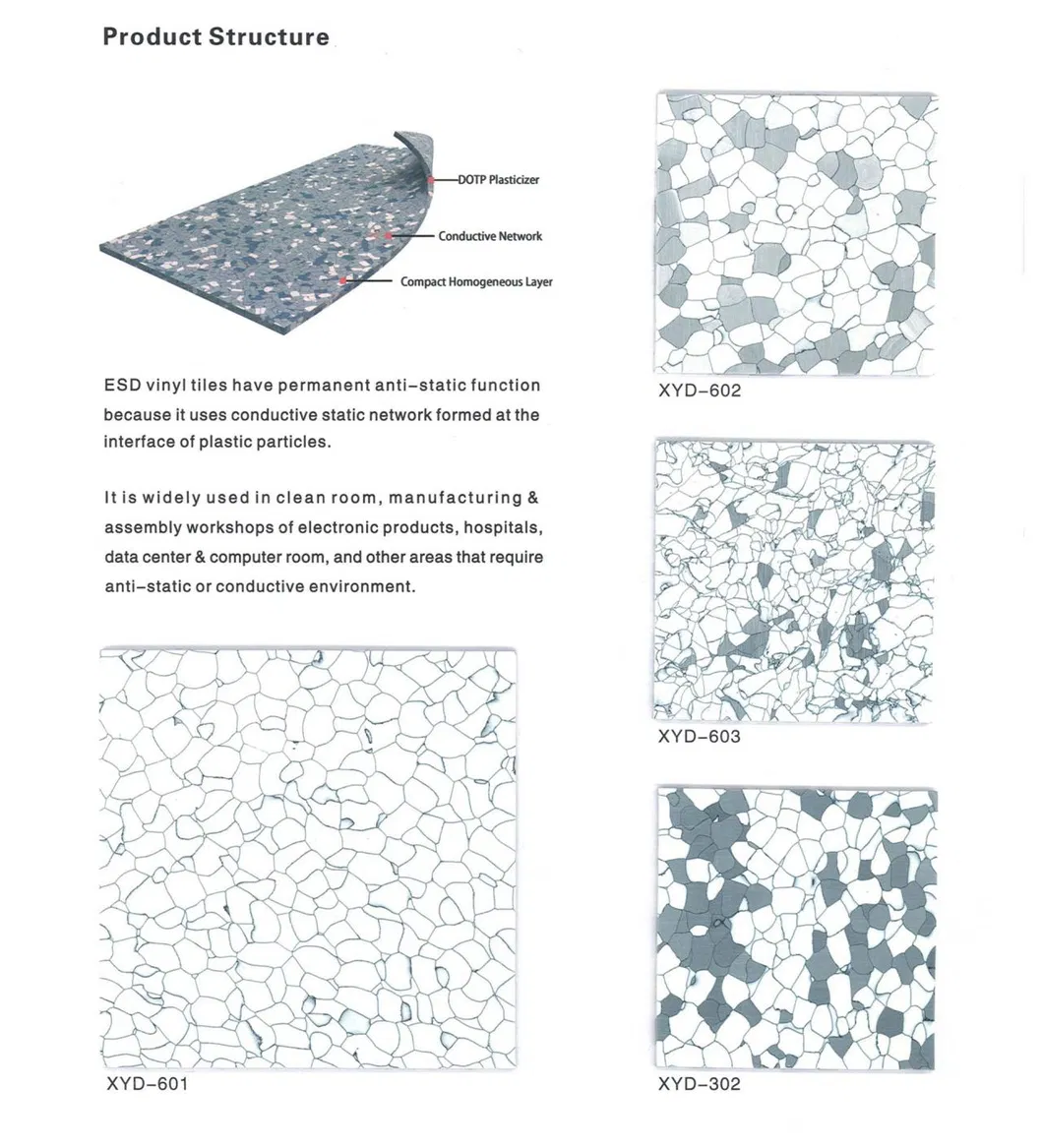

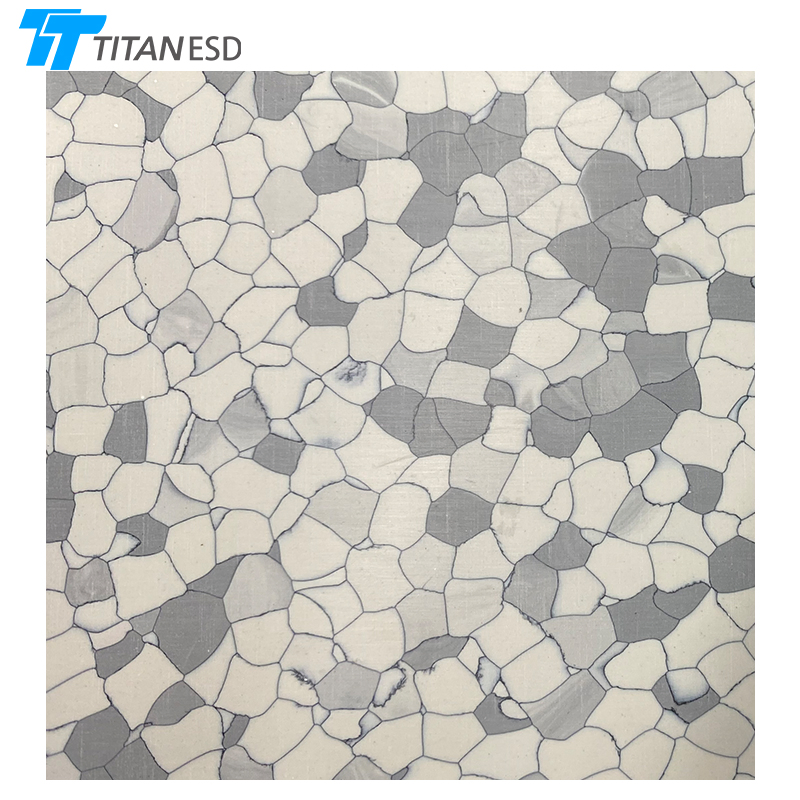

ESD vinyl tiles is a homogeneous form flooring, which utilizes an conductive network electrostatically and formed by the interface of plastic particles. It ensures permanent conductive properties of ESD flooring. The main materials of ESD flooring tile are polyvinyl chloride resin, conductive materials, stabilizers, plasticizers, pigments and other auxiliary materials. The pattern of a ESD flooring tile resembles a marble pattern, it has a good decorative effect.

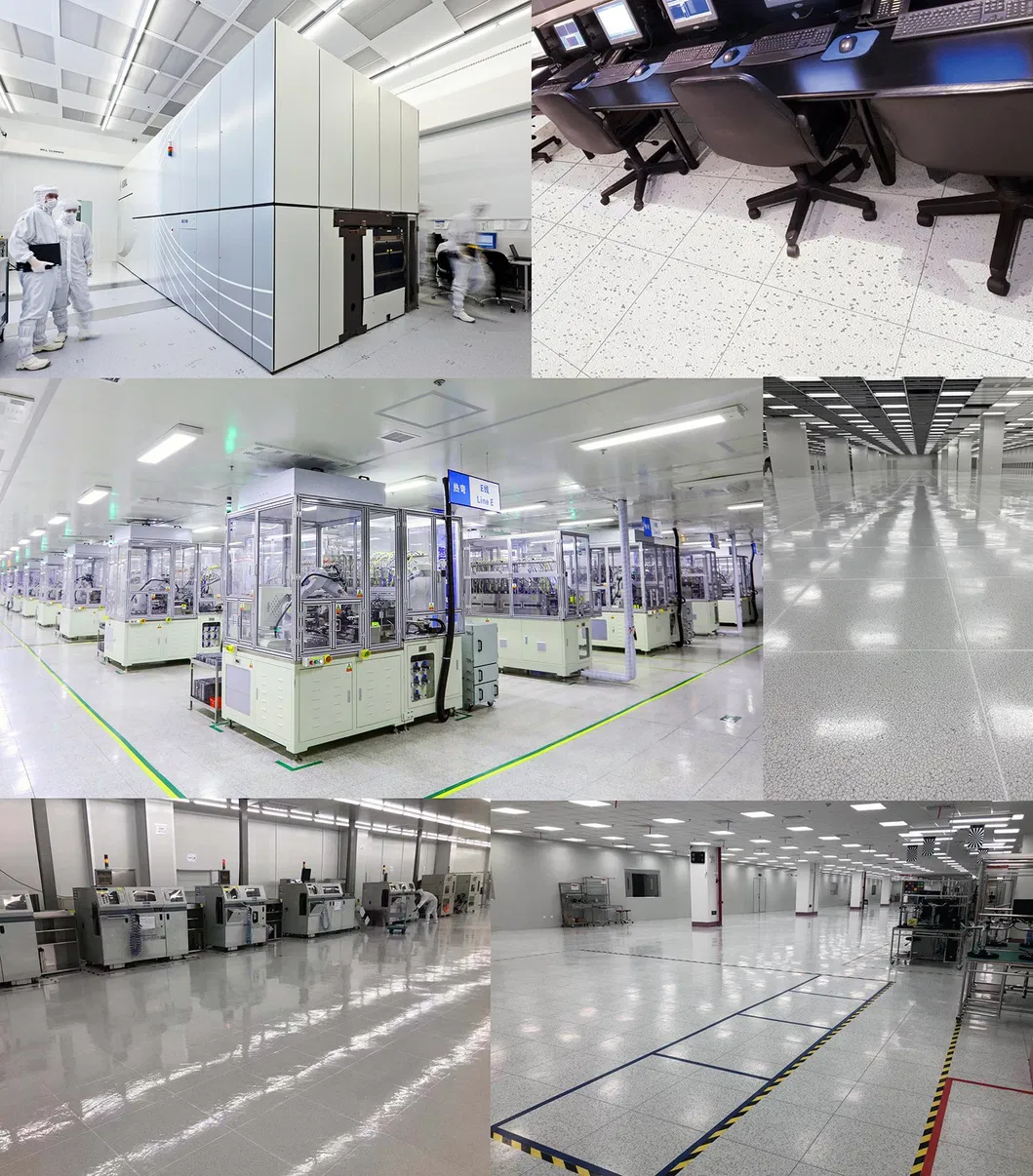

Widely used in clean room, manufacturing & assembly workshops of electronic products, hospitals, data center & computer room, and other areas that require anti-static or conductive environment.
| Item | Standard | Data |
|---|---|---|
| Size (mm) | SJ/T11236 / EN427 | 600*600, 610*610, 900*900 |
| Thickness (mm) | SJ/T11236 / EN428 | 2.0, 2.5, 3.0 |
| Electrical Resistance (Ω) | SJ/T11236 / EN1081 | Conductive: 10^4-10^6 | Dissipative: 10^6-10^9 |
| Fire Resistance | EN13501-1 | Bfl-s1 |
| Slip Resistance | DIN 51130 | R9 |

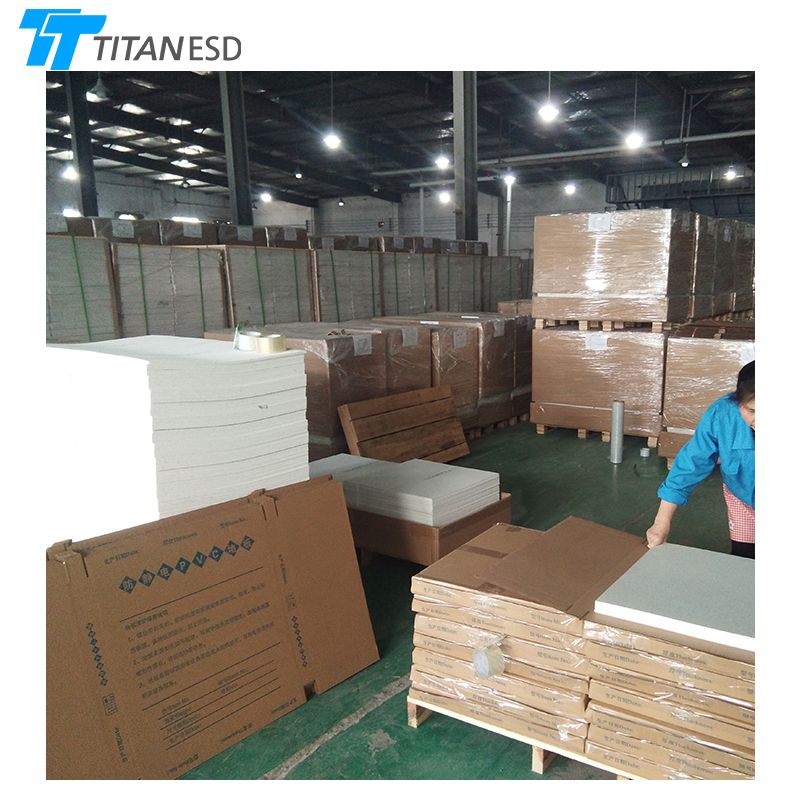

1. Standard 20ft container can load 12 pallets.
2. One 20ft container can load 4320m² (2mm thick) or 3024m² (3mm thick) with matched accessories: adhesive & welding rod.
